P6 Indoor LED Screen Fixed

Quick Details

P6 Indoor LED Display Screen:

Pixel Pitch:6MM

Cabinet Material:Die-casting Aluminum Cabinet/Iron

Cabinet size:576X576MM or Customised

Refresh rate:1920Hz/3840Hz

Brightness:1800NITS

Power Consumption:700W/M2(MAX)

IC:MBI5124/MBI5153/ICN2037/SM16106

LED:KINGLIGHT LED/NATIONSTAR LED

LED CHIP:SANAN/EPISTAR

Cabinet weight:Depends on cabinet size and material

Control card:Nova Star/Linsn/Huidu/Colorlight

Application:Indoor Fixed

Features:

▇Indoor High Defination

▇LED Screen size is customised

▇High refresh rate:>1920Hz

▇Anti-ghost line and tailer line design is available

▇Die-casting Aluminum and Iron cabinet available

P6 Indoor Rental LED Screen 576x576mm

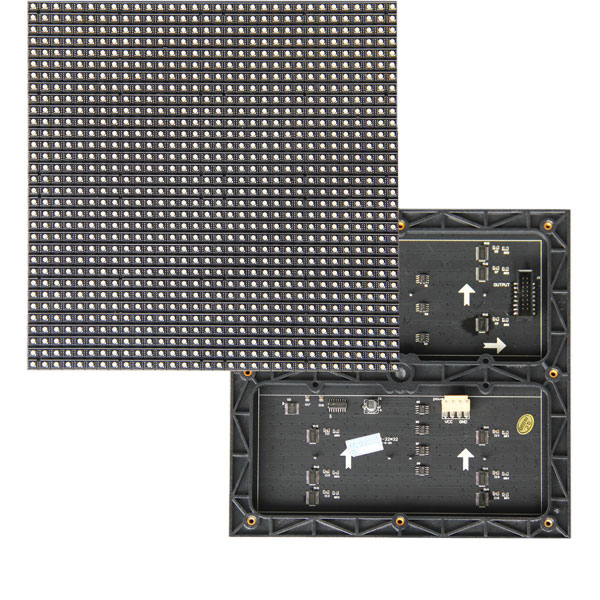

Module Parameters		Pixel pitch	6mm
		Pixel Density	27777pixels/m2
		LED Shape	SMD 3in1/SMD3528
		LED Configuration	1R1G1B
		Module Resolution	32x32 pixel
		Module Size	192*192mm
		Drive Method	1/8(1/16) constant current drive
Cabinet Parameters		Cabinet Resoltuion	96*96
		Cabinet Size	576*576mm or cusomised
		Cabinet Weight	9kg(50Kg/M2)
Display Parameters	Optical	Brightness	≥1200 cd/m2(1800cd/m2)
		Viewing angle	H/V 160/160
		Best Viewing Distance	≥8m
		Display Color	16.7 million
		Grey Scale	16bits/65536levels
	Power	Max power consumption	700 W/m2
		Ave power consumption	250 W/m2
		Working Voltage	220V / 110V
	Control system	Frame Frequency	60--85 HZ
		Refresh Rate	≥1920 HZ
		Data Transmission	CAT 5/ Optic Fiber
		Image Source	S-Video, PAL/ NTSC
		Controlling system	Linsn, Nova,Huidu,Colorlight
		Format	Video Compatibility DVI, VGA, composite
	Reliability	Working Temperature	-20~65 ℃
		Working Humidity	10-95% RH
		Life Span	100,000 Hours
		MTBF (Ave No Faliure Time)	5000 Hours
		Pixel failing Rate	0.01%
		IP Rate	IP40

The led display for Soutec LED With Anti-ghost and Tailer Design effect:
