Item

P3.91

P4.81

P5.95

P6.25

P7.8

P10.4

Pixel Pitch(mm)

3.91

4.81

5..95

6.25

7.8

10.4

LED Type

SMD1921

SMD1921

SMD2727

SMD2727

SMD2727

SMD2727

Pixel Density(dots/㎡)

65536

43222

28224

256000

16352

9246

Module Dimension(MM)

500*250

500*250

500*250

500*250

500*250

500*250

Module Resolution(Dots)

128*64

104*52

84*42

80*40

64*32

48*24

Cabinet Dimension(MM)

1000*1000MM(Custom size available)

Scan Method(Scan)

1/8(1/16)

1/7

1/7

1/5

1/4

1/3(1/2)

Power Consumption

(Max/Average)

800/240W

800/240W

800/240W

800/240W

800/240W

800/240W

Brightness(Nits)

4500/5000/7500

5000/8000

5000/7000

5000/7000

5500/10000

5500/10000

Color Depth

14

Refresh Rate(Hz)

1920Hz/3840Hz

View Angle(°)

H:160°/V:160°

AC Input Frequency(Hz)

AC110V/220V 50/60HZ

Operate Temp(℃)

-30℃~+50℃

Storage/Operate Humidity

10-90%RH

IP Rating

IP67/IP65

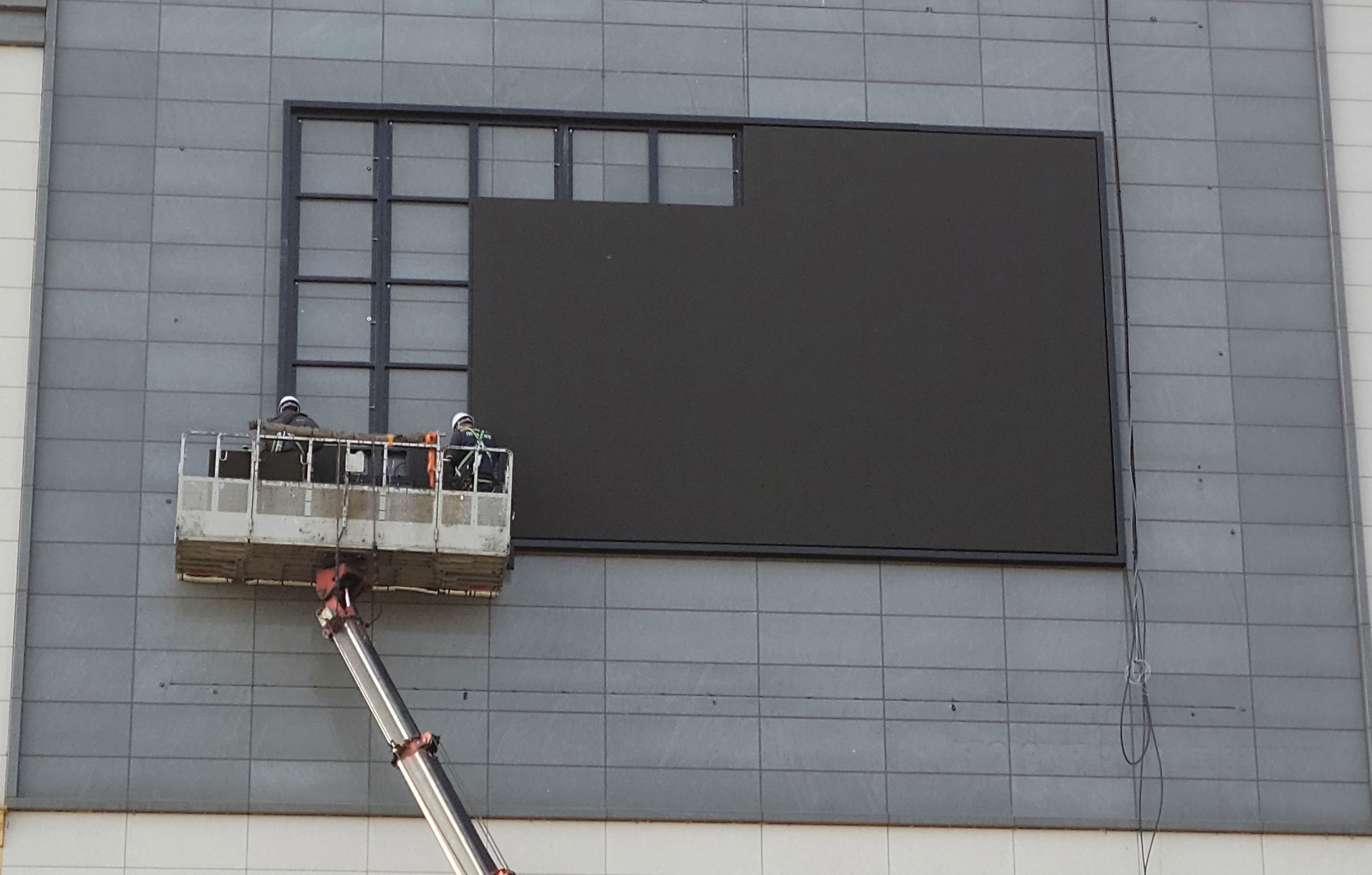

Instrallation/Maintenance

Front Installation and Front Maintenace

Weight

22.5kg/pc
